Marine seaweed Sargassum wightii extract as a low-cost sensitizer for ZnO photoanode based dye-sensitized solar cell

The marine seaweed, S. wightii was collected from the Pudhumadam coast of Gulf of Mannar, Southeast coast of India, Tamil Nadu. Chemical reagents, such as high pure zinc acetate dihydrate and oxalic acid dihydrate were procured from Merck. Highly stable imidazole based liquid electrolyte (EL-HSC) was supplied by Dyesol, Australia. Fluorine-doped tin oxide (FTO) conducting glass (TEC-7, sheet resistance = ∼6–8 Ω cm⁻²) was obtained from Pilkington, Mumbai, India. All other chemicals used in this work were of analytical grade. Unless otherwise specified, deionized double distilled water was used for the preparation of aqueous solutions and washings.

The S. wightii seaweed sample was washed with fresh water several times to remove salts and finally washed with distilled water couple of times. The washed seaweed sample was shade dried to remove moisture content completely. The dried sample was ground in a mixer grinder to get a seaweed powder. Around 1 g of the seaweed powder was soaked in 60 mL of absolute ethanol and kept in a refrigerator for 24 h. The ethanolic solution of S. wightii seaweed extract was used for further studies.

The ZnO NPs were synthesized by following the previously reported procedure [27]. In brief, equal volume of zinc acetate dihydrate (0.1 M) and oxalic acid dihydrate (0.1 M) aqueous solutions were mixed together by stirring for 12 h at room temperature. The obtained white precipitate was filtered, washed sequentially with acetone and distilled water several times to remove impurities. Then, the precipitate was dried in a vacuum oven at 120 °C for 6 h to remove water molecules completely. Finally, the formed ZnO NPs were calcinated at 450 °C for 2 h in a muffle furnace.

Absorption spectrum of S. wightii seaweed extract was recorded in a UV–vis spectrophotometer (UV-2550, Shimadzu). FTIR spectrum was recorded in the region between 4000 and 400 cm⁻¹ using a Shimadzu FTIR spectrometer (Model 8400S). The pigments present in the ethanol extract of S. wightii seaweed were analyzed according to the previous reports [28–31]. Scanning electron microscopy (SEM) images of the ZnO NPs were taken in a VEGA 3 TESCAN SEM instrument. Elemental composition of the ZnO NPs was subsequently analyzed after the SEM analysis by using the same instrument. Oriel class-A solar simulator (M–91195A, Newport) containing ozone-free 450 W xenon lamp was used as a light source for testing the solar cell. A computer-controlled Autolab PGSTAT302N electrochemical workstation was employed for photocurrent–voltage (I–V) and photocurrent–time (I–T) measurements.

1 g of the synthesized ZnO NPs were ground in a porcelain mortar with 0.35 mL of distilled water and 33.5 μL of acetylacetone until get a viscous paste. Then, 1.35 mL of distilled water was gradually added under continuous grinding followed by the addition of 15 μL triton X-100. The obtained paste was used to form a thin film on conducting side of a FTO glass with an active surface area of 1 cm² [32]. The addition of acetylacetone prevents reaggregation of ZnO NPs and triton X-100 facilitates spreading of ZnO colloidal paste on the surface of FTO conducting glass. The thin film was dried in air for 15 min, kept at 400 °C in a muffle furnace for 5 min and the same procedure was repeated three times to get an optimum thick (∼10 μm) film. Then, the film was calcinated at 450 °C for 30 min and allowed to cool down to 80 °C. The hot film at 80 °C was immersed in ethanolic solution of S. wightii seaweed extract and kept in a refrigerator for 24 h. The dye-adsorbed ZnO photoanode was withdrawn from the ethanolic extract solution under a stream of nitrogen gas which was immediately sandwiched with the platinum deposited counter electrode by using alligator clips. The platinum counter electrode was prepared on FTO conducting glass substrates using 7 × 10⁻³ M H₂PtCl₆.6H₂O solution in 2-propanol, where Pt⁴⁺ ions were thermally reduced at 400 °C. Finally, few drops of imidazole based liquid electrolyte was dropped sideways in the gap between the two electrods through which the electrolyte was occupied the space between them with an aid of surface tension. The fill factor (FF) and efficiency (η) of the DSSC was evaluated by using the following equations:

$$\begin{eqnarray*}&&\begin{array}{lllllllllllllll} {\rm FF}=\frac{{{I}_{{\rm max} }}{{V}_{{\rm max} }}}{{{I}_{{\rm sc}}}{{V}_{{\rm oc}}}}, \\ \eta (\%)=\frac{{{I}_{{\rm sc}}}{{V}_{{\rm oc}}}{\rm FF}}{{{P}_{{\rm in}}}}\times 100, \\ \end{array}\end{eqnarray*}$$

where I_sc is the short-circuit photocurrent, V_oc is the open-circuit photovoltage, P_in is the power of incident light (45 mW cm⁻²), I_max and V_max are the photocurrent and photovoltage delivered at maximum power point, respectively.

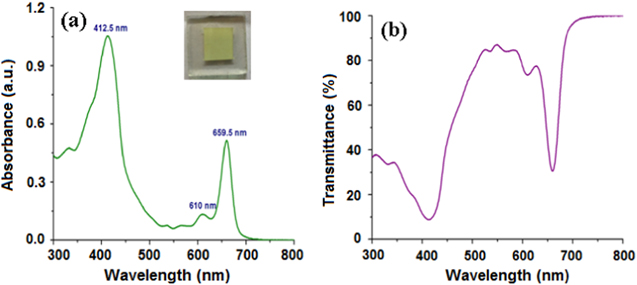

The UV–vis absorption spectrum was recorded to elucidate the potency of S. wightii seaweed extract to be used as a sensitizer in solar cell. The UV–vis absorption spectrum of the S. wightii seaweed extract is shown in figure 3(a) and its transmittance spectrum is given in figure 3(b). One of the essential requirements for a best performing sensitizer is broad and intense absorption in the visible and near-IR region of the solar spectrum [33]. The absorption spectrum of the S. wightii seaweed extract showed a broad absorbance in the wavelength range between 300 and 700 nm, with absorption peaks at 412.5, 610 and 659.5 nm in visible region of the solar spectrum. These absorption peaks can be associated with the characteristic absorption of chlorophylls [34, 35].

Zoom In Zoom Out Reset image size

Generally, the chlorophylls exhibit strong absorption in the blue and red regions of the solar spectrum. However, they show poor absorption in the green region, which is consistent with our result. The absorption wavelength of each peak and their intensity exhibited by the S. wightii seaweed extract can be ascribed to the transition energies and transition–dipole moments in transition from ground state to the Soret, Q_x and Q_y singlet-excited states [24]. The broad absorption of S. wightii seaweed extract in the visible region can result in absorption of higher photon energy which leads to generate more photoelectrons. Moreover, this broad absorption can facilitate a higher number of delocalized π-electrons in the molecular system for the improved photocurrent generation [36].

FTIR spectroscopy can be employed for the qualitative determination of organic constituents and functional groups present in plant and seaweed species and hence, the FTIR spectrum of S. wightii extract was recorded (figure 4). The absorption bands situated in the region between 1100 and 1000 cm⁻¹ are corresponding to the C–H bending or C–O or C–C stretching vibrations of carbohydrates [37] and polysaccharides [38] present in the S. wightii extract. The band observed around 881 cm⁻¹ is due to the aromatic C–H out-of-plane vibration, which indicates the existence of aromatic ring pigment compound [39]. The weak absorption band centered at 669 cm⁻¹ can be ascribed to the C–H bending vibration, which is also confirmed the presence of carbohydrates. The strong and broad absorption band positioned at 3371 cm⁻¹ can be attributed to the free O–H and N–H stretching vibrations of the amino acids [40]. The existence of chlorophyll groups are confirmed through the C–H stretching vibrations at 2976, 2928 and 2895 cm⁻¹ [41]. The weak absorption bands observed between 2344 and 2365 cm⁻¹ correspond to the C–O stretching which are the characteristic peaks of carboxylic group [42]. The absorption band centered at 1654 cm⁻¹ is due to the C–O stretching and N–O asymmetric stretching of the ester group [43]. The bands around 1452 and 1410 cm⁻¹ are due to the C–C stretching vibration of aromatic ring compound. The medium absorption band at 1273 cm⁻¹ is indicating the C–N stretching vibration of chlorophyll. The FTIR results suggest that carbohydrate and chlorophyll are the major constituents of the S. wightii seaweed extract.

Zoom In Zoom Out Reset image size

The SEM images of ZnO NPs were recorded and are shown in figure 5. It is obvious that particle size and surface potential of the semiconductor nanoparticles could control the amount of dye adsorbed on their surface that determines the number of photogenerated charge carriers generation and hence overall efficiency of the DSSC [44]. The higher magnified SEM image clearly exhibits the presence of spherical and uniform ZnO NPs with size range between 40 and 50 nm (figure 5(a)). The ZnO NPs consist of clusters of small grains. The ZnO NPs are highly interconnected with each other which could facilitate fast diffusion of photogenerated electrons and considerable voids between the nanoparticles could favor the better interfacial charge transfer. The lower magnified SEM image shows the presence of coarse ZnO nanostructures with undefined morphology, which are made up of combination of several spherical ZnO NPs (figure 5(b)). The EDX analysis was subsequently performed during SEM analysis (figure 6). The EDX spectrum clearly discloses the existence of Zn and O elements alone. The absence of any other impurities in the EDX spectrum reveals that ZnO only formed through our synthesis procedure.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

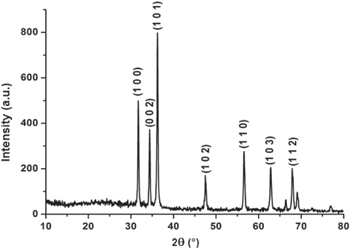

The purity and crystalline nature of the ZnO NPs were analyzed through powder XRD analysis (figure 7).

Zoom In Zoom Out Reset image size

The ZnO sample must be annealed to improve its crystallinity and hence the ZnO sample was calcinated in a muffle furnace under oxygen atmosphere. The typical furnace annealing was carried out at 450 °C to improve the characteristics of ZnO sample. The well resolved diffraction peaks noticed at 2θ values of 31.7, 34.4, 36.4, 47.5, 57.1, 63.2, 66.7, 67.8, 69, 72.6 and 76.8° are matched well those to Bragg's reflection of the standard wurtzite structure hexagonal ZnO with lattice constants a and c of 3.25 and 5.20 Å, respectively (JCPDS file no. 36-1451). The observed diffraction plane (0 0 2) intensity is corresponding to 2θ value of 34.4° and its diffraction planes intensity ratio (R_(002)/(101)) value is 0.44, which suggests that the formed ZnO NPs are hexagonal in shape [45]. The diffraction peaks of the annealed samples become more intense and sharper and this discloses that the crystal quality of ZnO has improved as a consequence of high temperature annealing. The full width at half maximum of ZnO sample has decreased while increasing the temperature.

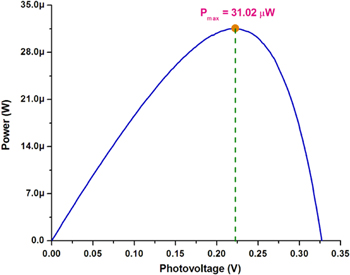

The photocurrent–photovoltage (I–V) curve of the solar cell sensitized with S. wightii seaweed extract is given in figure 8 and its corresponding power curve is shown in figure 9. The short-circuit photocurrent and open-circuit photovoltage are the most crucial parameters, which decide the efficiency of the cell. In our case, the solar cell sensitized with S. wightii seaweed extract exhibited a short-circuit photocurrent density (J_sc) of 203 μA cm⁻², open-circuit photovoltage (V_oc) of 0.33 V, maximum peak power (P_max) of 31.02 μW, FF of 0.46 and an overall solar to electrical energy conversion efficiency (η) of 0.07%. Generally, the natural dyes employed as sensitizers in solar cell deliver very low efficiencies when compared to synthetic organic and inorganic dyes, due to the absence of specific functional attachment groups and low absorption in the visible region of the solar spectrum [8]. The significant photocurrent generated in our work can be ascribed to the broad absorption of the S. wightii seaweed extract in visible region of the solar spectrum, owing to the presence of basic photosynthetic pigments. The pigment analysis of the S. wightii seaweed extract showed the presence of chlorophyll a (0.16 mg g⁻¹), chlorophyll b (0.19 mg g⁻¹), chlorophyll c₁ and c₂ (0.17 mg g⁻¹), carotenoids (0.003 mg g⁻¹) and fucoxanthin (0.036 mg g⁻¹). These pigments effectively capture the incoming photons and generate higher number of photogenerated electrons, which lead to the significant current production in the DSSC. In terms of ZnO NPs photoanode, the photovoltaic parameters obtained in our work can be comparable with the previous reports [24, 46] of TiO₂ photoanode based DSSCs sensitized with seaweed and green algae extracts (table 1). Therefore, the use of seaweed photosynthetic pigments as sensitizers in solar cell could be an appropriate solution for the production of low-cost DSSCs by eliminating the high-cost ruthenium metal complexes. Moreover, the exploitation of seaweeds for energy conversion through solar cell would facilitate transformation of natural seaweed resources into valuable biomass. Further optimization studies and ways to improve the efficiency of the present DSSC are under progress.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The stability and photocurrent generation nature of the solar cell sensitized with S. wightii seaweed extract were analyzed by chronoamperometry technique for a total time of 600 s and the obtained transient photocurrent–time (I–T) profile is shown in figure 10. The transient photocurrent–time profile observed for the DSSC is well accordance with its corresponding I–V profile character. During the chronoamperometry experiment, when the light in the solar simulator was switched 'ON' to illuminate the solar cell, a sharp rise in the photocurrent was observed. When the light was switched 'OFF' after a specified time interval of 40 s by closing the mechanical shutter in the solar simulator, the photocurrent was suddenly dropped down to zero. It can be inferred from these results that the dye regeneration of oxidized dye was fast enough to keep pace with the charge carrier injection rate from the excited dye molecules. The highest photocurrent observed was almost remained the same in the absence of any considerable decay after several 'ON–OFF' cycles during the whole period of light illumination, which reveals good stability of the solar cell. Moreover, the stability test indicates good stability of the S. wightii seaweed extract as sensitizer over the ZnO NPs thin film photoanode and hence it can be used as a stable sensitizer for DSSC.

Zoom In Zoom Out Reset image size
