Functionalization of multiwalled carbon nanotubes by microwave irradiation for lysozyme attachment: comparison of covalent and adsorption methods by kinetics of thermal inactivation

Lysozyme from chicken egg white (41 800 units mg⁻¹, solid, 44 700 units mg⁻¹ protein), multiwalled carbon nanotubes (MWCNT, 98% carbon basis, OD  ×  ID  ×  L  =  10 nm  ±  1 nm  ×  4.5 nm  ±  0.5 nm  ×  3–6 µm), Micrococcus lysodeikticus ATCC No 4698 lyophilized, N-(3-dimethylaminopropyl)-N'-ethyl carbodiimide hydrochloride (EDAC) purum  ⩾98.0% (AT), N-hydroxysuccinimide (NHS)  ⩾98% and 2-(N-morpholino)ethanesulfonic acid (MES)  ⩾99.5% were purchased from Sigma–Aldrich. Sulfuric acid (95–97%) was purchased from Merk and nitric acid (70%) was purchased from Faga Lab.

MWCNT were modified by microwave-assisted treatment in a strong acid mixture of concentrated sulfuric and nitric acids (3:1). The MWCNT containing acid suspension (1 mg ml⁻¹ nanotube concentration) was placed in a microwave reactor (CEM Discover) at 150 W and 70 °C during 1 h. After treatment, the suspension was transferred to a cellulose acetate dialysis membrane (molecular mass cutoff about 12 kDa) and dialyzed against Milli-Q water, replacing the dialysis with fresh water until the pH remained steady. The black color suspension was frozen and lyophilized to obtain dry oxidized MWCNT (MWCNTox).

2.3.1. Adsorption method (CNT-Lyz-Ads).

2.3.2. Covalent method (CNT-Lyz-Cov).

The MWCNTs were examined by x-ray photoelectron spectroscopy (XPS) on a Perkin Elmer PHI 5100 photoelectron spectrometer (USA) with Mg-Kα exciting irradiation, 10 kV, 300 W and 20 mA. The pressure in the analysis chamber was maintained approximately at 10⁻⁸ torr during each measurement. To compensate for surface charging effects, all binding energies were referred to C1s neutral carbon peak at 284.6 eV. The high resolution XPS spectra of C1s region was deconvoluted to determine the concentration of functional groups containing oxygen on CNT surface [28, 29].

Transmission electron microscopy was done using a JEOL 2010F microscope (Japan) operated at 200 keV and equipped with a XEDS spectrometer (Bruker). Sample suspensions were re-dispersed in deionized water through sonication and an adequate portion was transferred to copper grids for the analysis.

Fourier transform infrared (FTIR) spectra were recorded using a Perkin Elmer frontier spectrometer (England) by KBr pellet technique. The Raman spectra were recorded in Joriba LabRam spectrometer, using the exciting light of 488 nm Ar⁺ laser.

Activity assays for free and immobilized Lyz were carried out at 37 °C in phosphate buffer using M. lysodeikticus (pH 6.1, OD₄₅₀  ≈  0.7, 5 min, n  =  3) as substrate. The bacteria lysis was detected by a decrease in the optical density at 450 nm (OD₄₅₀).

For free Lyz (0.1 mg ml⁻¹), 10 µl of Lyz solution were added to 1 ml of substrate M. lysodeikticus solution. Complexes (MWCNT-Lyz-Ads and MWCNT-Lyz-Cov) were used after preparation and 10 µl of complex solution were added to 1 ml of substrate (M. lysodeikticus) solution. The reaction was carried out in 1.5 ml cuvettes with 1 cm light path and the optical density was monitored after 5 min with lapses of 10 s with constant stirring using a CARY Varian 50 UV–vis spectrophotometer (Australia) equipped with thermostated cell. One unit (U) of Lyz produces an optical density (OD₄₅₀) of 0.001 per minute in a pH 6.1 at 37 °C. For each assay blank correction was made, using the sample without enzyme [30].

The thermal inactivation of free and immobilized Lyz complexes (adsorption and covalent) was studied by incubating the enzyme at different times without substrate in a range of temperatures between 30–60 °C in buffer MES (50 mM, pH 6.1). Free Lyz and MWCNT-Lyz complexes were cooled on ice and the enzymatic activity was measured immediately after incubation.

The data obtained from the thermal inactivation kinetics were used to determine the thermal parameters using following equation [31, 32]

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle A=\left(1-\alpha \right){{\text{e}}^{-kt}}+\alpha .\nonumber \end{align} \tag{ 1 }$$

The inactivation rate constant $k~\left({{h}^{-1}} \right)$ and the ratio of specific activities or remaining activity $(\alpha)$ were calculated for every assay at different times $(t)$. The rate constant was determined for each temperature (T) and the activation energy $({{E}_{\text{a}}})$ was estimated using the Arrhenius equation:

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle k={{k}_{0}}{{\text{e}}^{-\frac{{{E}_{\text{a}}}}{RT}}},\nonumber \end{align} \tag{ 2 }$$

where ${{k}_{0}}$ is the pre-exponential factor, $R$ is the gas constant (8.314 J mol⁻¹ K⁻¹) and T is the absolute temperature (K). Half-life value (t_1/2) of inactivation is given by the expression:

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle {{t}_{\frac{1}{2}}}=\frac{\text{ln}(2)}{k}.\nonumber \end{align} \tag{ 3 }$$

Enthalpy ($\Delta {{H}^{\#}}$) can be calculated once obtained the ${{E}_{\text{a}}}$, with equation:

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \Delta {{H}^{\#}}={{E}_{\text{a}}}-RT.\nonumber \end{align} \tag{ 4 }$$

Additionally, the standard free energy of Gibbs $(\Delta {{G}^{\#}})$ for thermal inactivation was calculated with following equation [33]

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle \Delta {{G}^{\#}}=-RT\text{ln}\left(\frac{kh}{KT} \right),\nonumber \end{align} \tag{ 5 }$$

where $h$ is the Planck constant ($6.626\times {{10}^{-34}}\,\text{J}\,\text{s}$) and $K$ is the Boltzmann constant ($1.38\times {{10}^{-23}}\,\text{J}\,{{\text{K}}^{-1}})$.

Activation entropy $(\Delta {{S}^{\#}})$ was calculated [34] by the expression:

$$\begin{align} \newcommand{\e}{{\rm e}} \displaystyle T\Delta {{S}^{\#}}=\Delta {{H}^{\#}}-\Delta {{G}^{\#}}.\nonumber \end{align} \tag{ 6 }$$

All calculations were done by nonlinear regression.

Free and immobilized Lyz were stored at 4 °C for 50 d without substrate. The activity assay was carried out at different times with substrate M. lysodeikticus using conditions previously described (37 °C, OD₄₅₀  ≈  0.7, pH 6.1, 5 min).

MWCNTs are inherently hydrophobic, and they tend to agglomerate in aqueous solution. It is well known that functionalization of the MWCNT by oxidative treatment incorporates oxygen contained groups onto MWCNT surface, which promotes the hydrophilicity of nanotubes [10].

The effectiveness of functionalization treatment of CNT can be qualitatively evaluated by monitoring their suspension stability in aqueous media. Figures 1(a) and (b) show the appearance of as prepared pristine MWCNT and MWCNTox aqueous dispersion, respectively. Figures 1(e) and (f) depict the same dispersions of MWCNT and MWCNTox samples, respectively, after 24 h. As can be seen, pristine MWCNT precipitated, while MWCNTox remained in suspension as an indication of hydrophilicity after the oxidative acid treatment.

Zoom In Zoom Out Reset image size

Figures 1(c) and (d) include images of as prepared MWCNT-Lyz-Ads and MWCNT-Lyz-Cov aqueous dispersion, respectively, whereas figures 1(g) and (h) show the same dispersions of MWCNT-Lyz-Ads and MWCNT-Lyz-Cov, in that order, after 24 h. Both enzyme immobilization processes produced instability in the suspensions of the resulting complexes, which can be attributed to the weight increase of nanotubes due to Lyz attachment.

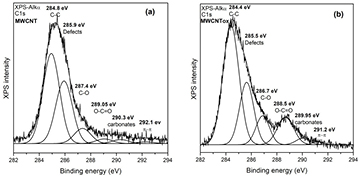

XPS analysis is a technique very effective to identify functional groups incorporated onto nanotubes by the microwave-assisted treatment. Figure 2 shows the deconvolution of high resolution XPS spectra of C1s signal for pristine MWCNT and MWCNTox samples. It can be noticed an increase of the contribution centered at 288.5 eV assigned to carboxylic groups, which changed from 2.57% in the original sample to 11.90% after microwave-assisted oxidative treatment. Li et al [35] modified single walled carbon nanotubes by ozone treatment and they determined by XPS an incorporation of 11.00% of carboxylic groups after 72 h of ozone treatment. Signals corresponding to C–C bonds (284.5 eV), π–π interaction (291.5 eV) and those of oxygen-contained groups such as C–O (287.4 eV) and carbonates (290.0 eV) were also identified in spectra of figure 2.

Zoom In Zoom Out Reset image size

Raman spectroscopy is a sensitive technique for characterization of CNT. The quantification of the intensity ratio between D and G bands (I_D/I_G) is a valuable tool to elucidate changes in the graphene sheet [36]. Curve (a) in figure 3 shows the spectrum of pristine MWCNT, in which it can be observed the G-band at 1568.7 cm⁻¹ related to C–C stretching vibrations and the disorder induced D-band at 1346.5 cm⁻¹ with an I_D/I_G of 1.02. Raman spectrum for MWCNTox (curve (b) in figure 3) displays the same peaks as a pristine sample; G-band at 1570 cm⁻¹ and D-Band at 1348.3 cm⁻¹ with an I_D/I_G of 1.04. Despite negligible change in the I_D/I_G ratio between pristine and oxidized MWCNT, there was detected an increase of the signal intensity at 1608 cm⁻¹ corresponding to D'-band. This change was attributed to a double resonance feature induced by disorder and defects, as results of the high density of states for zone-edge and mid zone phonons [37]. This band has been observed by other researchers in surface modification of MWCNT [28, 37].

Zoom In Zoom Out Reset image size

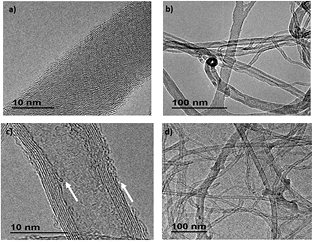

Morphological changes on the surface of the MWCNT were analyzed by TEM. Figure 4 shows micrographs of pristine MWCNT ((a) and (b)) and MWCNTox ((c) and (d)) samples. The images revealed that the microwave-assisted treatment produced damage in outer and inner walls of nanotubes, as is pointed out in figure 4(c). There have been reported that acid treatments of nanotubes assisted by sonication often produce the fragmentation of nanotubes into shorter structures [18]. It is important to highlight that in this case, despite the partial damage observed in boundary walls of nanotubes, the nanotubes preserved their integrity without severe changes in their surface morphology and length (figure 4(d)).

Zoom In Zoom Out Reset image size

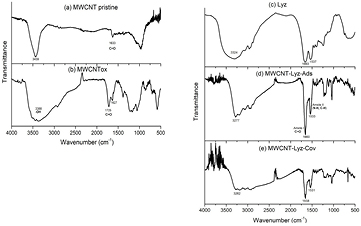

FTIR technique was performed to corroborate the functionalization of MWCNT and subsequent enzyme attachment onto modified nanotubes. The spectrum of pristine MWCNT (figure 5(a)) shows bands at 3439 cm⁻¹ and 1633 cm⁻¹ attributed to the stretching vibration of O–H and C=O groups, respectively. This result was in agreement with XPS findings (figure 2(a)) and indicated that original nanotubes were partially oxidized. After the microwave-assisted acid treatment of MWCNT, a noticeable band appeared at 1725 cm⁻¹ which were assigned to the carbonyl absorption of the carboxylic groups (figure 5(b)). Moreover, it was observed a broadening of hydroxyl band at 3388 cm⁻¹ due to the increase of the contribution of carboxylic moieties. This clearly corroborates that carboxylic groups were successfully increased on nanotube surface by the treatment [9, 28, 29].

Zoom In Zoom Out Reset image size

The spectrum of Lyz and Lyz attached by adsorption or covalent bond to CNT are also presented in figure 5. Figure 5(c) shows the spectrum of free Lyz, in which it can be observed a broad band centered at 3324 cm⁻¹ assigned to OH group and peaks at 1663 cm⁻¹ and 1542 cm⁻¹ related to amide I (C=O stretching vibration) and amide II (mainly N−H bending vibration, coupled to C=O and C=C stretching), respectively. The spectrum of MWCNT-Lyz-Ads complex (figure 5(d)) was mostly similar to that of free Lyz, because the enzyme was coating the nanotubes [22]. MWCNT-Lyz-Cov (figure 5(e)) displayed spectral differences in the adsorption complex; it was observed a reduction of the absorption from 3400 to 3200 cm⁻¹ due to the decrease of the O-H contribution of the carboxylic groups of the MWCNTox to form the amide bond with the enzyme. This is an indication of covalent attachment of Lyz to the surface of the MWCNTox. The peaks at 2930 cm⁻¹ were assigned to the stretching vibrations of C−H bonds of the alkyl group [20].

It was found that the Lyz immobilized by adsorption and covalently linked onto MWCNTox preserved its activity against M. lysodeikticus. To achieve a difference between complexes, and taking in account the importance of immobilized enzymes for industrial applications, thermal and storage stability of the complexes were evaluated.

The stability of MWCNT-Lyz-Ads and MWCNT-Lyz-Cov at different temperatures was studied to elucidate differences between the methods of immobilization. Figure 6 illustrates the profile of thermal inactivation of the different complexes in the range of temperature of 30–55 °C. Experimental data of inactivation followed the first order monophasic kinetic model [38]. After 60 min of incubation, residual activity appeared to be constant for each assay. For the remaining activity, the MWCNT-Lyz-Ads sample (figure 6(a)) presented a major initial decrease and the $k$ value (table 1) was higher in comparison with that of MWCNT-Lyz-Cov sample.

Table 1. Thermal and kinetics parameters of the inactivation of MWCNT-Lyz-Ads and MWCNT-Lyz-Cov complexes.

MWCNT-Lyz	$T$ (°C)	$k$ (h−1)	$\alpha$	${{t}_{1/2}}$ (h)	$\Delta {{G}^{\#}}$ (kJ mol−1)	$\Delta {{H}^{\#}}$ (kJ mol−1)	$\Delta {{S}^{\#}}$ (J mol−1)	${{E}_{\text{a}}}$ (kJ mol−1)
Adsorption	30	3.60	0.79	0.19	91.70	52.73	−128.53	55.25
	35	2.48	0.60	0.28	94.20	52.69	−134.71
	40	3.59	0.52	0.19	94.81	52.65	−134.64
	45	4.20	0.40	0.17	95.95	52.61	−136.24
	50	5.40	0.25	0.13	96.83	52.57	−136.97
	55	9.48	0.09	0.07	96.83	52.53	−135.02
Covalent	30	1.20	0.80	0.58	94.47	69.16	−83.47	71.68
	35	2.36	0.64	0.29	94.29	69.12	−81.68
	40	2.73	0.53	0.25	95.44	69.08	−84.19
	45	4.36	0.33	0.16	95.73	69.04	−83.89
	50	6.71	0.25	0.10	96.07	69.00	−83.80
	55	10.42	0.14	0.07	96.36	68.95	−83.51

Zoom In Zoom Out Reset image size

The kinetic parameters of thermal deactivation (table 1) indicated that the complex by adsorption had an adverse impact in the stability against complex by covalent binding at low temperatures. The $k$ values at low temperatures of MWCNT-Lyz-Ads were higher than those of MWCNT-Lyz-Cov, which mean that the inactivation is faster for adsorption complex. The activation energy was calculated for both complexes by the Arrhenius activation energy (E_a), being 55.25 kJ mol⁻¹ (adsorption) and 71.68 kJ mol⁻¹ (covalent), corroborating that is necessary more energy to deactivate the complex linked covalently.

The free energy of Gibbs (▵G^#) of activation was positive for both complexes, and the inactivation was not spontaneous. The results showed a higher enthalpy (68.95 kJ mol⁻¹) at a temperature of 55 °C for MWCNT-Lyz-Cov while the enthalpy for MWCNT-Lyz-Ads was found to be lesser (52.32 kJ mol⁻¹). Higher enthalpy indicates an increase of the stability of the enzymatic system assuming that there are fewer bonds broken during inactivation [34]. However, the entropy of the systems was found to be negative for both complexes. Entropy change ($\Delta {{S}^{\#}}$) indicates the net enzyme and solvent disorder. Entropy is considered the most useful parameter in understanding the stability of proteins because when a protein molecule is deactivated, the disorder of the system increases which is direct measured of entropy [39]. Therefore, a negative entropy indicates that there is more stability in the deactivation of the complex linked covalently, associated with the ordering of enzyme—solvent system. After deactivation, water tends to form ordered clathrate structures around the non-polar molecule and this leads to a decrease of the entropy.

The storage stability of free and immobilized Lyz was studied by measuring the residual activity during 50 d of keeping at 4 °C (figure 7). It was notorious that the free Lyz had an increasing of the residual activity in the first 10 d after incubation. This behavior has been noted for other proteins [38, 40]; this is a fact that the enzymes may protect themselves against inactivation. On the other hand, MWCNT-Lyz-Cov and MWCNT-Lyz-Ads complexes showed a residual activity of 75 and 50%, respectively, after 50 d of storage. Based on these ultimate results and those of thermal stability, we state that the covalent link is more favorable for immobilization of Lyz onto CNT functionalized by microwave-assisted acid treatment.
