Co-solvents roles in PEDOT:PSS ink-jet inks

The materials used in this experiment were: poly (3,4-ethylene dioxythiophene): polystyrene sulfonate (PEDOT:PSS) as 1.3 wt% dispersion in ${{{\rm H}}_{2}}{\rm O}$ ($1\,{\rm S}\cdot {\rm c}{{{\rm m}}^{-1}}$) and ITO coated polyethylene terephthalate (PET) with surface resistivity $60\,\Omega \cdot {\rm s}{{{\rm q}}^{-1}}$ were provided by Sigma-Aldrich; the various co-solvents such asdiethylene glycol (DEG), triethylene glycol (TRIEG), tetraethylene glycol (TETRAEG), polyethylene glycol 200 (PEG200) and all other related substances used in this work were chosen from laboratory grade as received from Merck Company (Germany). Table 1 shows the properties of the co-solvents used in the PEDOT:PSS ink formulations.

Table 1. The properties of co-solvents used in the formulations.

Ink	Name	Structure	Dipole moment (Debye)	Boiling point (°C)
1	Diethylene glycol (DEG)		2.7	245
2	Triethylene glycol(TRIEG)		2.99	288
3	Tetraethylene glycol (TRIEG)		3.25	329
4	Polyethylene glycol (PEG)		3.6	>300

The prepared ink formulations were filtered through a $0.45\,\mu {\rm m}$ and $0.2\,\mu {\rm m}$ Sartorius Minisart filter (Göttingen, Germany). The indium tin oxide coated PET were ink-jet printed using an Epson Stylus Photo P50 printer in 1 and 3 printing runs. Then, the printed flexible PET were dried and heat-treated in an Azar 1250 furnace at 130 °C [40]. The equilibrium contact angle $\theta$ of each ink/substrate mixture was measured using charge coupled device (CCD) camera and image analysis software (LB-ADSA mode). The pH, surface tension and viscosity of the ink were obtained using 827 pH Metrohm meters, Tensiometer K100MK2 and Anton Paar MCR 300 Rheometer, correspondingly. The surface morphology and cross sectional view of printed PEDOT:PSS ink on the flexible PET substrate was determined through the use of a LEO; model 1455VP scanning electron microscope (SEM) and DME Dual Scope C320 model atomic force microscopy (AFM). Additionally, morphology and size of the PEDOT:PSS inks were observed under a transmission electron microscopy (TEM) (JEM-100CXII). Particle size of PEDOT:PSS was determined by dynamic light scattering (DLS) equipment (Malvern Instrument, UK; model ZEN 3600), which measured the random changes in the intensity of light scattered from an ink. Optical transmittance of the ink-jet printed PEDOT:PSS films were measured, within the wavelength range of 300 – 800 nm, by means of a UV/visible spectrometer (Agilent 8453). Sheet resistance of the ink-jet printed PEDOT:PSS films was measured by a WS-1 type four-probe apparatus.

To prepare different ink-jet inks, four inks in which the percentage of PEDOT:PSS, deionized water, isopropyl alcohol and co-solvents (table 2) were same in their formulation but contained various types of co-solvents that have different structures, dipole moments and boiling points were prepared. The pH value of the inks was later set to $7-7.5$ by a buffer solution to avoid any damage to printer head and cartridge. The prepared inks (Ink1 to Ink4) were ultra-sonicated for 10 min then filtered through a $0.45\,\mu {\rm m}$ and $0.2\,\mu {\rm m}$ Sartorius Minisart filter in order to remove the particles, which had agglomerated during the ink formulation process.

The ink-jet printing was undergone using an Epson Stylus Photo P50 printer sets to 1200 dpi. The printing process using the PEDOT:PSS ink formulation onto the flexible indium tin oxide coated PET was displayed in table 2. To remove any pollutant from prior print, the printer was flushed through with PEDOT:PSS ink. All substrates uncontaminated by the chemical solvents to remove surface contaminants and to provide a clean ITO surface to enhance the adhesion of ink onto its surface [41]. Therefore, ITO coated PET substrates were washed with deionized water, isopropyl alcohol, acetone, and methanol, respectively in an ultrasonic bath at room temperature, for 10 min separately. The methanol is an effective solvent for ITO cleaning, as it provides a higher surface energy [41]. Finally, the cleaned ITO coated PET dried at 80 °C for 1 h just before loading into the printing system. The prints were adjusted to 1 and 3 runs by a computer program to assess the differentiations in the electrical conductivity properties with variation in thickness of the printed film. Following initial drying of the printed film, the flexible ITO coated PET were heat-treated at optimum temperatures (130 °C) from previous study [40] for 10 min. Then, they were cooled down to the room temperature.

The viscosity of the prepared ink predominantly affects the rheological behaviors through the capillary nozzles of the printer. Figure 2 shows the variation of viscosities along with shear rates for the prepared water soluble inks on a logarithmic scale. It is apparent that the viscosity of the inks has remained almost unchanged by increasing the shear rate; demonstrating that the inks behave as a Newtonian fluid. Consequently, the type of co-solvents had no effect on rheological behavior of the PEDOT:PSS inks, and viscosity of the prepared inks was found to be in acceptable range at shear rate $1000\,{{{\rm s}}^{-1}}$ [42]. However, the viscosity of the prepare inks increased from $0.0014$ to $0.002\,{\rm Pa}\cdot {\rm s}$ at shear rate $1000\,{{{\rm s}}^{-1}}$ by increasing the molecular weight of adding co-solvents.

Zoom In Zoom Out Reset image size

Surface tension of the prepared inks plays important roles not only in wettability of the ink onto the substrate but also in decomposition of the ink into fine drops through the capillary tubes of the printer nozzle. Water, as the most important phase in the ink formulation, played the primary role in controlling surface tension. Surface tension of the prepared inks (table 3) was found to be in acceptable range $37.5$ to $45\,{\rm mN}\cdot {{{\rm m}}^{-1}}$ for commercial ink-jet inks [43].

Table 3. Surface tension of PEDOT:PSS ink-jet inks formulations.

Ink	Surface tension (${\rm mN}\cdot {{{\rm m}}^{-1}}$)
1	35.3
2	38.43
3	43.3
4	43.4

The size of the PEDOT:PSS particles in the prepared inks (Ink1-Ink4) were determined by dynamic light scattering (DLS). DLS results presented in figure 3 indicates, the particle size of PEDOT:PSS for all the prepared ink are on the acceptable range to use in ink-jet printing process. The DLS results show that, as the size of molecular structure of co-solvent increased, the particle size of PEDOT:PSS increased. These results prove that the type of co-solvents effect to the morphology of PEDOT:PSS chain.

Zoom In Zoom Out Reset image size

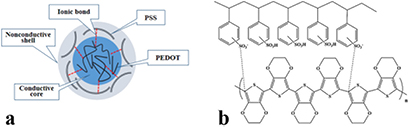

The PEDOT:PSS has a tertiary structure with a diameter of several tens nanometer, where hydrophobic PEDOT molecules aggregate to form physical cross-links between the PSS chains in water. Adding organic co-solvents in ink formulation may bring a screening effect between the positively charged PEDOT chains and negatively charged PSS chains and then reducing the coulomb interaction between them, which causes a phase separation between PEDOT and PSS (figure 4). Therefore, by increasing the molecular size of co-solvent the space between the PEDOT and PSS chains increased that cause increasing in the PEDOT: PSS particle size.

Zoom In Zoom Out Reset image size

The conductivity of ten different locations on each ink-jet printed samples were measured and an average of the measured values were calculated and presented in table 4. The results in table 4 clearly show that the electrical of the PEDOT:PSS ink-jet printed depend noticeably on the types of co-solvents. An assessment of the conductivity values between the different co-solvents shows that the samples, which have higher dipole moment, boiling point, molecular weight as a co-solvent in the ink formulation have higher conductivity than the other samples. This is consistent with the difference in co-solvents formulated in ink-jet ink affects the printed film conductivity. In the PEDOT:PSS dispersion the polymer chains have shown in most occurrence to adapt a random coil conformation. A thin film is formed with grains containing of doped conjugated polymer coils, when the dispersion is printed onto a substrate [5, 6]. PSS chains are made up of several hundred monomer units, the polymer grains are distinguished by the PSS random coil with ionically attached PEDOT chains.

Table 4. Surface resistance of printed PEDOT:PSS on PET/ITO substrates.

Ink	Surface resistance ($\Omega \cdot {\rm c}{{{\rm m}}^{-2}}$)/1 layer	Surface resistance ($\Omega \cdot {\rm c}{{{\rm m}}^{-2}}$)/3 layers
1	48.5	47.1
2	48.1	47.4
3	47.5	46.5
4	47.2	45.7

In polar and protic solvents, which have large dipole moment and can donate proton (${{{\rm H}}^{+}}$) cause the removal of the negative charge PSS⁻chain (${\rm SO}_{3}^{-}$) to produce ${\rm PSS{\text -}}{{{\rm H}}^{+}}$ by effectively screening them from the positively charged hydrophobic PEDOT chains, which cause the phase separation between the chains. Consequently, as the dipoles of additive increased the coulomb interaction reduced increasingly, then because of loosely structure the PEDOT chains during film formation reoriented and leaving high conductivity of thin film on the surface of the substrate.

On the other hand, by increasing the molecular size of the co-solvent, the space between PEDOT and PSS chains increased. Then as the boiling point of co-solvent increased, the length of the time that co-solvent exist in between PEDOT and PSS chains raised (figure 4), thereby creating an opportunity for a favorable morphological rearrangement to a decreased resistance between dried particles, thus increasing the overall conductivity of the film. However, the boundaries between the dried particles in an ink-jet printed film contribute significantly to the overall resistivity of the film. Maximum conductivity is achieved by maximizing the contact between dried particles in PEDOT:PSS films. Therefore the conductivity enhancement is strongly dependent on the chemical structure, dipoles, and boiling point of co-solvent. By increasing dipole moments, and boiling point of co-solvent, the thin film conductivity on the surface of the substrate increase.

Table 4 shows that the dependency of the electrical properties of the material to the number of runs performed with the PEDOT:PSS ink-jet inks. By increasing the number of printing runs, the conductivity of the printed film increase. This raising in conductivity might be due to increase the thickness and uniformity of the pattern by build-up a greater concentration of the conductive PEDOT:PSS on the substrate.

As the three runs of PEDOT:PSS ink-jet printed films had the optimum conductive properties, therefore, the optical properties of that optimum printed film were assessed by UV–VIS absorption spectroscopy. Figure 5 illustrates that the average transmittance of PEDOT:PSS ink-jet printed films (Ink1 to Ink4) on the visible light region slightly decreased by increasing not only the molecular weight of co-solvents but also the particle size distribution of PEDOT:PSS, for example the transparency of the Ink1, which formulated with DEG is $87.58\%$ and for Ink 4 that consist PEG is $86.62\%$. It was assumed that, by increasing the particle size distribution of PEDOT:PSS the thickness of the printed film raised, hence the light reflection faintly increased. The ink-jet printed PEDOT:PSS films onto the flexible substrate exhibited have high transparency within the visible wavelength region and ideal for use in optoelectronic devices. Therefore, it is inferred that adding co-solvents to the PEDOT:PSS based ink-jet inks had a minor effect on optical properties of the PEDOT:PSS ink-jet printed film.

Zoom In Zoom Out Reset image size

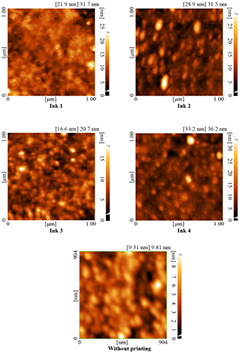

AFM topography images were obtained for different ink-jet printed films (Ink1 to Ink4), that contain various co-solvent in their formulation, to allow studies possible changes in morphology on a nanometer scale. The morphologies of the four samples were compared as measured by AFM topography images (figure 6). Therefore, the AFM images and results of the Ink1 to Ink4 printed films (table 5) confirmed that the roughness of PEDOT:PSS ink-jet printed films increased from 2.9 to 3.55 nm at root mean square (RMS) by increasing the molecular weight of co-solvent and PEDOT:PSS particle size distribution. Furthermore, the AFM images show a grain like structure of PEDOT:PSS film. Grain like structure was matched to the previous studies, which can be explained by the self-assembly and consequently increased inter-chain interaction occurring in the film form by ink-jet printing process [4, 44]. Therefore, adding co-solvent in the ink formulation effect on the roughness and morphology of the printed PEDO:PSS films.

Zoom In Zoom Out Reset image size

Table 5. The AFM results of printed different PEDOT:PSS inkjet inks formulation.

Ink	Square (${\rm n}{{{\rm m}}^{2}}$)	Size (nm)
1	3	21.03
2	3.5	22.9
3	3.52	25.3
4	3.55	25.74
Without printing	1.35	7.36

SEM images of the ink-jet printed PEDOT:PSS films (Ink1–Ink4) are depicted in figure 7 demonstrates the addition co-solvent effect on the morphology of the ink-jet printed PEDOT:PSS. In SEM image the size of cauliflower like structures increased by increasing the boiling point and molecular weight of used co-solvent in ink-formulation.

Zoom In Zoom Out Reset image size

TEM image of the optimum PEDOT:PSS ink is depicted in figure 8 that demonstrates micelles of PEDOT:PSS particles in the ink and clearly demonstrates the well dispersed particles with a minimal size variation (200 nm) in the ink.

Zoom In Zoom Out Reset image size
